MLTUS Slag Deepfield Aluminum Electromagnet


MLTUS Slag Deepfield Aluminum Electromagnet

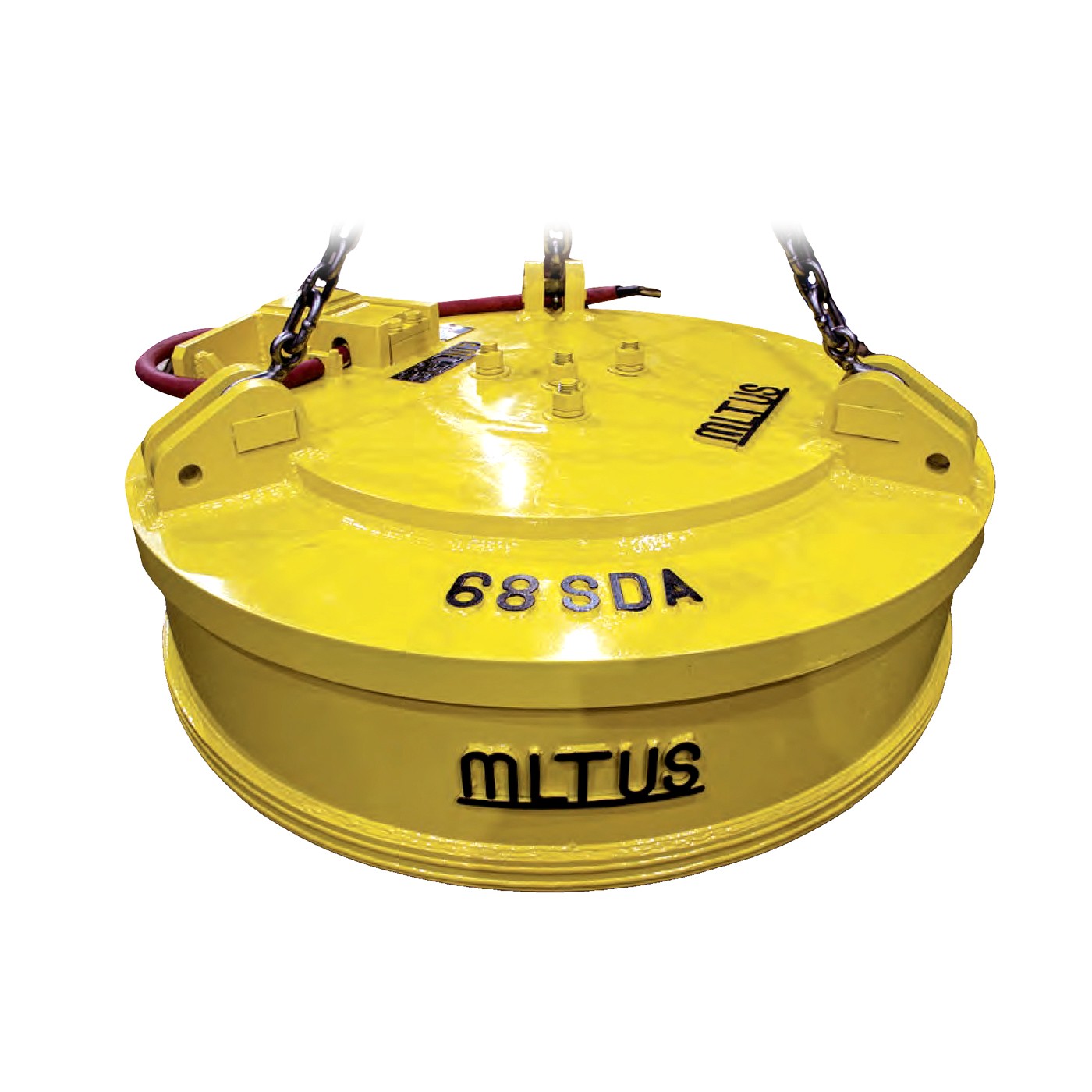

The MLTUS Slag Deepfield Aluminum Electromagnet (SDA) is one of the most diversified magnets ever produced. Built to withstand intense levels of physical abuse in demanding environments, the SDA can handle everything from highly abrasive scrap and slag to billets, slabs, drop balls, and more. If it's ferrous and needs to be moved, the SDA Electromagnet can move it. The aluminum version of this magnet weighs less than its copper-wound cousin, the SDC, and is used when crane capacity restrictions are in play. Available in diameters ranging from 48" to 68".

Ideal For Use In:

  • Drop ball applications
  • Slag reclaiming
  • Heavy-duty applications
  • Abrasive scrap handling
  • Intensive, high-abuse applications

Product Features:

  • 230 VDC
  • Aluminum-wound coils
  • Heavy-duty fabricated steel case
  • Extra-heavy-duty manganese bottom plate
  • Class H insulation
  • Hard face outer pole and body
  • 75% duty cycle
  • 1-year limited warranty
  • Hot service design available

SKU Details

Sku Images Part# Amperage Weight (lbs.) Controller Size Cable Size DROP BALL Size Size/Model Generator Size (kW) Slab Weight (lbs.) Description
MLTUS-SDA-58 68 7370 0-130 4/2 0-25000 58SDA 20 0-60000 MLTUS Slag Deepfield Aluminum Electromagnet - 58
MLTUS-SDA-68 85 12100 0-130 4/2 0-35000 68SDA 20 0-80000 MLTUS Slag Deepfield Aluminum Electromagnet - 68
