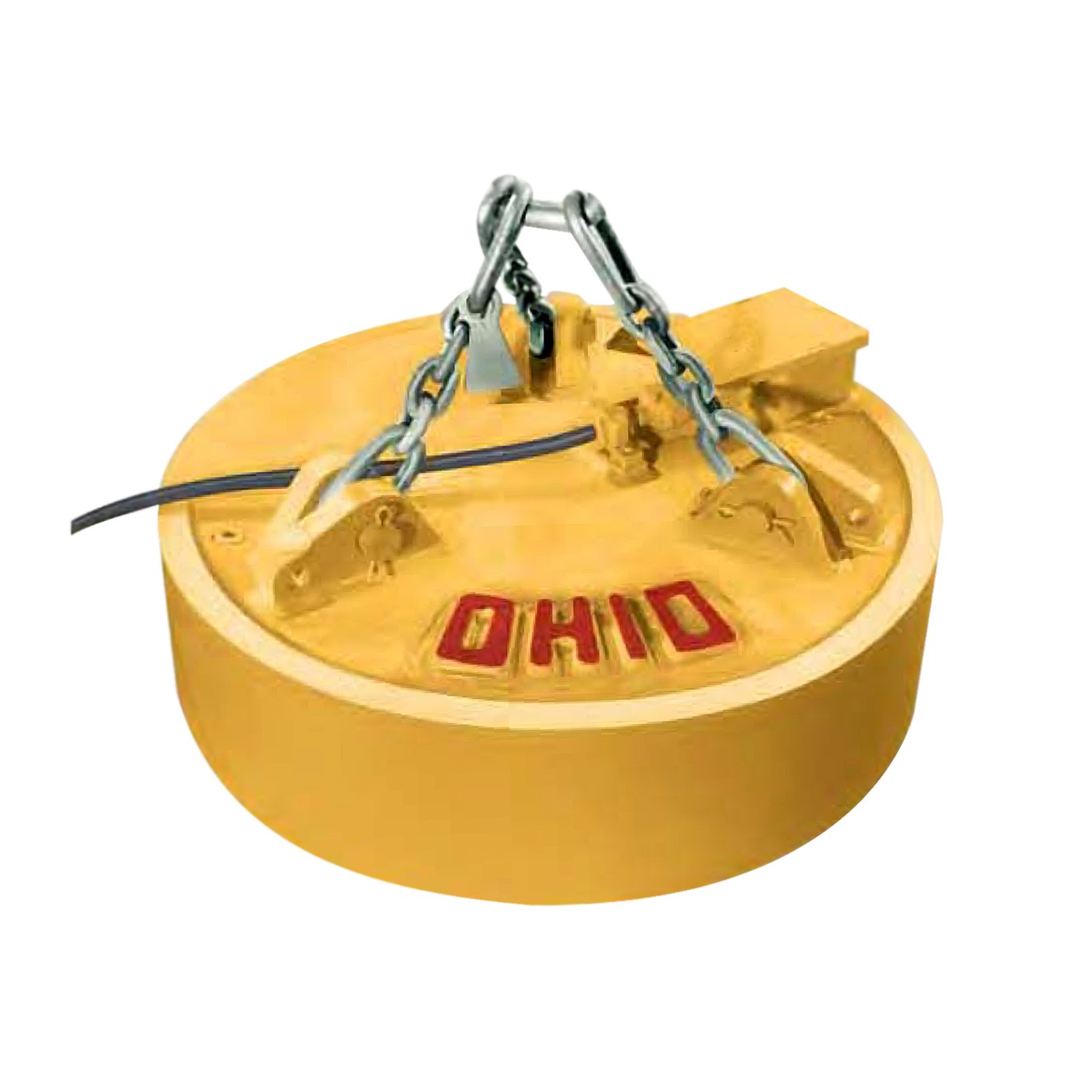

Ohio POW-R-LITE Magnets

These Ohio Lifting Magnets are small in size, but deliver powerful performance. Our POW-R-LITE Series of magnets are high duty-cycle, mechanically tough pieces of equipment that deliver low initial investment, high productivity and low maintenance costs for years. Ohio completes the system with factory-matched magnet generators and controllers. It’s all there, from the diesel or gasoline-driven generator to the magnet controller to the tough Pow-R-Lite Lifting Magnet. Each component is built to go the distance.

Ideal For Use In:

Track-Sweeping / Rail Maintenance-of-Way Operations
Scrap Handling
Plate Handling

Product Features:

Lightweight and ideal for scrap handling and track sweeping
Lifting Capability Range – 150 to 2,500 lbs.
Fabricated Case Construction
Aluminum or Copper Wound Coil Designs available
230VDC Standard

SKU Details

Part#	Diameter (in.)	Weight (lbs.)	Turning	Controller Size	SLAB	#1 Heavy Melt	#2 Heavy Melt	Amps Cold (230VDC)	Required KW	Wire Size	Description
OM-PL-20	20	350	50	CDS	5300	150	75	4	1	#10	Ohio POW-R-LITE - 20"
OM-PL-25	25	655	100	CDS	7700	300	150	10	2.3	#10	Ohio POW-R-LITE - 25"
OM-PL-30	30	960	175	CDS	10000	550	300	16	3.7	#10	Ohio POW-R-LITE - 30"
OM-PL-34	34	1510	270	CDS	13000	845	460	20	4.6	#10	Ohio POW-R-LITE - 34"
OM-PL-40	40	2030	330	RD-1W / MC-1A	16500	1220	580	30	6.9	#8	Ohio POW-R-LITE - 40"
OM-PL-45	45	3220	675	RD-1W / MC-1A	40000	2500	1150	27	6.2	#8	Ohio POW-R-LITE - 45"
