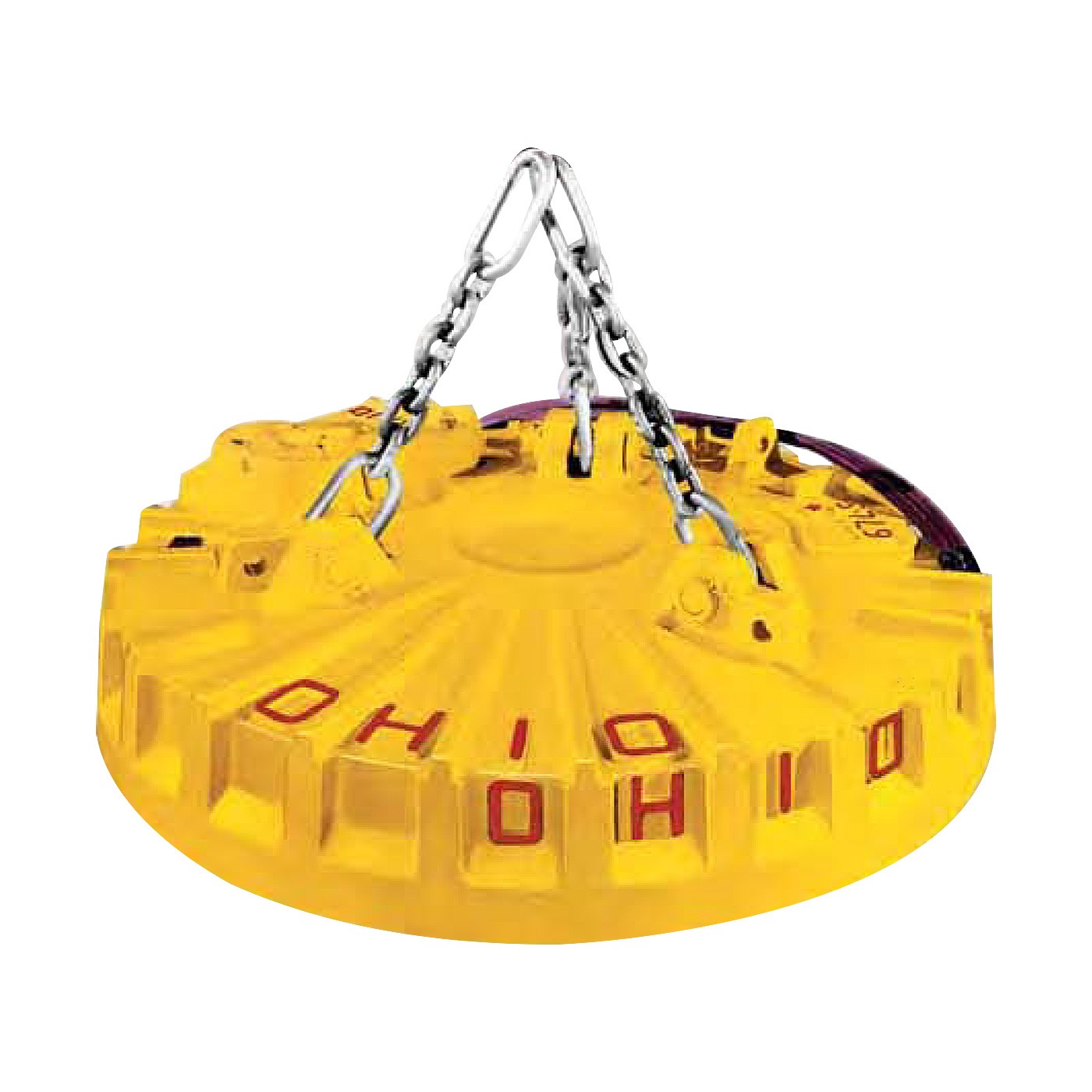

Ohio Loadstar (LS) Lifting Magnet





Ohio LOADSTAR series of lifting magnets are favorites of the scrap handling industry due to their heavy-duty construction and deep field design. Loadstar is specifically engineered to provide our customers maximum production scrap handling profitability and long productive life. The heart of Loadstar’s superior strength is a cast, steel magnet case with integrally cast, ribbed sections. High-strength alloy steel lifting chains and an extra thick work hardening manganese bottom plate complete the design circuit. The result is high day-to-day production, long service life and easy serviceability. When you consider the responsible, low initial cost of a Loadstar, you’ll know that you’re looking at an uncontested long-term value for your operation.

Ideal For Use In:

  • Production Scrap Handling

Product Features:

  • Low cost, high performance magnets ideal for scrap handling value
  • Available in 48”, 58" and 67" Design Diameters
  • Lifting Capability Range – 1,800 to 4,200 lbs
  • Lightweight and ideal for hydraulic machines
  • Have a rugged cast case construction
  • Deep field aluminum wound coil creates powerful gripping force
  • 230 VDC Standard
  • special voltages available by request

SKU Details


Sku Images Part# Diameter (in.) Weight (lbs.) Turning Controller Size #1 Heavy Melt #2 Heavy Melt Amps Cold (230VDC) Required KW Wire Size Description
OM-LS-48 48 2900 650 RD-1W / MC-1A 1800 625-1200 40 9.3 #8 Ohio Loadstar (LS) - 48
OM-LS-58 58 3900 850 RD-1W / MC-1A 2780 800-1800 60 13.8 #6 Ohio Loadstar (LS) - 58
OM-LS-67 67 5600 1350 RD-1W / MC-1A 4200 1350-2700 85 19.6 #4 Ohio Loadstar (LS) - 67
