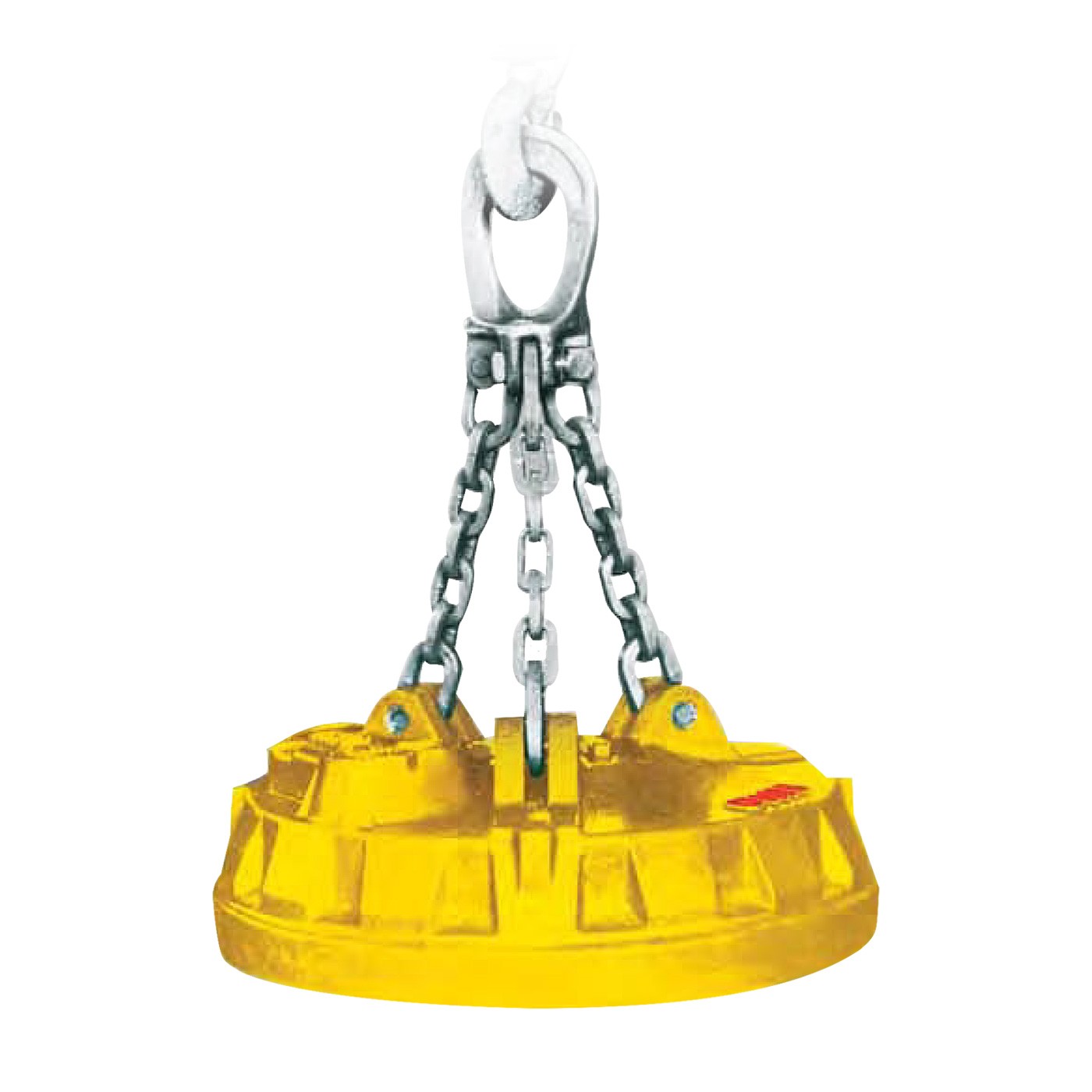

Ohio SR Series Magnets





Ohio SR series of steel mill-type lifting magnets are designed specifically for severe mill service applications, such as heavy drop ball handling, hot crop handling (hot-work construction), slab handling, and slag reclamation. The extra heavy cast steel magnet case, alloy steel lifting chains and quick-disconnect lead assemblies ensure that these magnets remain productive over a long life.

Ideal For Use In:

  • Severe Mill Service
  • Available for Hot-Work

Product Features:

  • Extra Heavy Duty cast case construction and alloy steel lifting chains, for maximum productive life
  • Available in 40", 47", 57", 65” and 69" Design Diameters
  • Lifting Capability Range – 2,250 to 18,000 lbs
  • Aluminum wound coils are standard design
  • Copper wound coils available for hot-work applications and added lifting capacity
  • Available in various designs including standard, deep and extra deep field (SRED) to provide maximum gripping force
  • Quick-disconnect lead assemblies, to provide speed and ease-of-use
  • 230 VDC standard, special voltages available by request
  • Hot-work designs available on request

SKU Details


Sku Images Part# Diameter (in.) Weight (lbs.) Controller Size SLAB DROP BALL Size #1 Heavy Melt Amps Cold (230VDC) Required KW Wire Size Description
OM-SRDC-40 40 SRDC 2550 RD-1W / MC-1A 27600 12000 1300 29 6.6 #8 Ohio SR Series - 40 Copper Coil
OM-SRDA-47 47 SRDA 3600 RD-1W / MC-1A 33400 16000 1900 38 8.8 #8 Ohio SR Series - 47 Aluminum Coil
OM-SRDC-47 47 SRDC 3900 RD-1W / MC-1A 33400 17000 2000 42 9.7 #8 Ohio SR Series - 47 Copper Coil
OM-SRDA-57 57 SRDA 6800 RD-1W / MC-1A 56500 22000 3200 65 14.8 #6 Ohio SR Series - 57 Aluminum Coil
OM-SRDC-57 57 SRDC 7200 RD-1W / MC-1A 56500 25000 3400 71 16.4 #6 Ohio SR Series - 57 Copper Coil
OM-SRDA-65 65 SRDA 11400 RD-1W / MC-1A 71200 35000 4800 74 17.1 #4 Ohio SR Series - 65 Aluminum Coil
OM-SRDC-65 65 SRDC 12800 RD-1W / MC-1A 71200 35000 4800 69 15.9 #4 Ohio SR Series - 65 Copper Coil
OM-SRDC-69 69 SRDC 18000 RD-1W / MC-1A 84500 45000 6500 84 19.4 #4 Ohio SR Series - 69 Copper Coil
