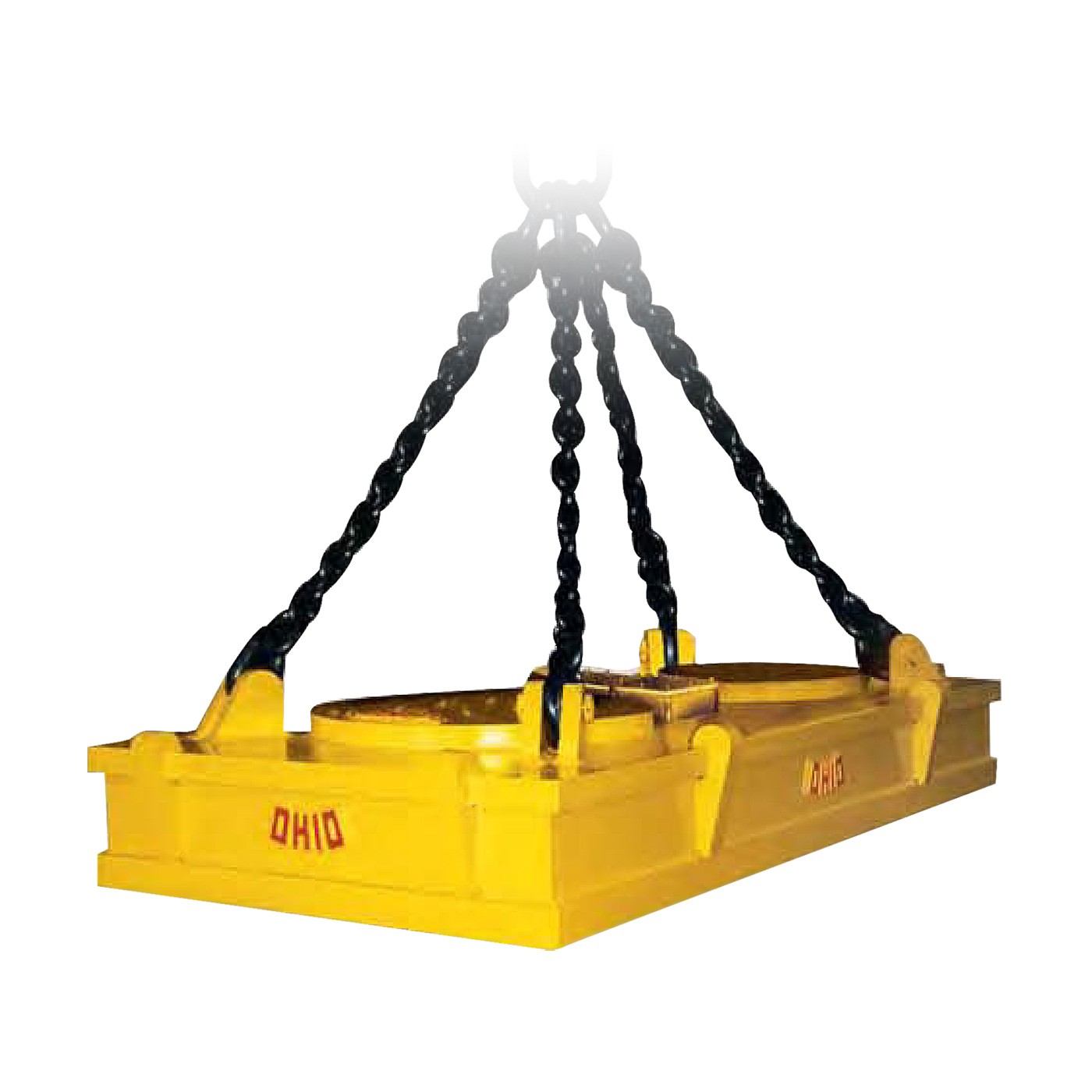

Ohio Rectangle Scrap Magnets (DAWXRM)





Ohio Rectangular Scrap Magnets provide optimum scrap charging capabilities, ideal for the loading and unloading of rail cars. The deep field dual coil design offers lower inductance, which decreases charging and discharging times. These magnets feature easy maintenance; sizes manufactured to suit your application, and continued operation even in the event of a single coil failure.

Ideal For Use In:

  • Scrap Handling / Loading and Unloading of Rail Cars

Product Features:

  • Heavy duty fabricated case
  • Available in variety of sizes from 63" by 126" to 83" by 166"
  • Lifting Capability (Plate Punchings) 14, 660 to 26,135 lbs
  • Ideal for the loading and unloading of rail cars
  • Optimum magnet for scrap charging
  • Deep field dual coil design for lower inductance which decreases charging and discharging times
  • Designed for ease of maintenance
  • Design allows for continued operation even in the event of a single coil failure
  • 230 Volts Standard
  • Dual voltage and special voltages available
  • Dual voltage and special voltages available
  • Sizes typically manufactured to suit applications

SKU Details


Sku Images Part# Weight (lbs.) Amps Cold Controller Size Cable Size Size/Model Punchings #1 Heavy Melt #2 Heavy Melt Cold KW Duty % Length (in.) Width (in.) Height (in.) HR (in.) BOW (in.) BOH (in.) BD (in.) Description
OM-DAWXRM-63x126 18300 185 RD-3A 2-#1/0 63 x 126 DAWXRM 14660 12540 8410 42.6 50 126 63 21.00 100.00 9.00 16.00 2.75 Ohio Rectangular Scrap Magnet 63 x 126 DAWXRM
OM-DAWXRM-68x136 20725 236 (2) MC-2A 4-#2 68 x 136 DAWXRM 18125 15500 10400 54.3 50 136 68 24.25 109.50 9.00 16.00 2.75 Ohio Rectangular Scrap Magnet 68 x 136 DAWXRM
OM-DAWXRM-73x146 29820 238 (2) MC-2A 4-#2 73 x 146 DAWXRM 21900 18590 11990 54.7 50 146 73 25.25 117.00 9.00 16.00 2.75 Ohio Rectangular Scrap Magnet 73 x 146 DAWXRM
OM-DAWXRM-83x166 33000 242 (2) MC-2A 4-#2 83 x 166 DAWXRM 26135 22090 14240 55.7 65 166 83 22.50 119.00 9.00 16.00 2.75 Ohio Rectangular Scrap Magnet 83 x 166 DAWXRM
