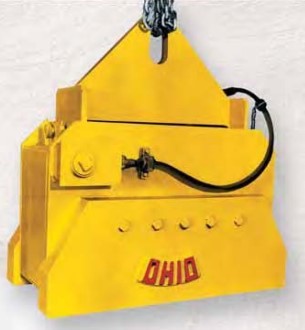

Ohio Bi-Polar Magnets





Ohio’s Bi-Polar Lifting Magnets do more than lift steel. They lift your profitability. These magnets handle finished and semi-finished steel and structural products. More importantly, they handle them without slinging, blocking and hooking operations. And Ohio Bi-Polar Lifting Magnets feature efficient, low-amp draw designs that cut energy costs every day. Add a price that is always reasonable and you’re looking at today’s superior value in lifting magnets. Ohio provides a wide spectrum of standard and special bi-polar magnet designs with options to meet any application. These designs uniquely handle higher-temperature material than a standard rectangular magnet through a specially positioned magnet coil. A specifically designed internal construction – just the right balance of wire to steel – develops maximum flux density for heavy-duty lifting with minimum power consumption. Furthermore, Ohio’s bi-polar magnets use fewer square inches of magnet pole to contact the load, substantially reducing heat transfer and thus retaining maximum lifting capacity. Ideal for Use In: Versatile magnet design for various mill applications, Easily lifts and transports Plates, Billets (hot and cold) Coils (eye vertical and horizontal), Bundles, Rebar, Rails, Tubes, Pipes and Structural products.

Product Features:

  • 100% lifting area with a virtual uniform field across the entire length of the magnet
  • Heavy-duty magnet construction
  • Pole shoe lengths from 24” to 100” or to any special length required
  • Handles higher temperature material compared to standard rectangular magnets.
  • Low power consumption
  • 230 VDC Standard
  • special voltages available on request
  • Custom designed pole shoes for radial or irregular shapes
  • Renewable or auxiliary pole shoes can be supplied for all sizes.
  • Designs available for hot-work applications

SKU Details


Sku Images Part# Length (in.) Width (in.) Plate Size Description
OM-BPRSM-8 8 1-1/2" 320 Ohio Bi-Polar Magnets
OM-BPRSM-12 12 2-1/2" 450 Ohio Bi-Polar Magnets
OM-BPRSM-13 13 3" 515 Ohio Bi-Polar Magnets
OM-BPRSM-19 19 3-3/4" 940 Ohio Bi-Polar Magnets
OM-BPRSM-22 22 5" 1010 Ohio Bi-Polar Magnets
