GRYB Self-Cleaning Permanent Separator - CPMAG Series


GRYB Self-Cleaning Permanent Separator - CPMAG Series


The CPMAG series is the most economical in terms of self-cleaning separators. Easy to use, it requires almost no maintenance and can capture all sizes of ferrous particles at a moderate distance. The magnet is always active and protects the equipment continuously. Being made from permanent magnets, the magnet consumes no energy. The only power consumption is the electric motor. The CPMAG series is designed for a high volume of iron to capture, because it is cleaned continuously, thanks to its robust belt. Its rigid frame is designed for intensive use and its motor is based on the ISO 9000 standards. For low volumes of iron to pick, it is suggested to use the PMAG series.

Ideal For Use In:

  • Mines
  • Aggregates
  • Breakers
  • Sawmills
  • Sorting centers
  • Steel shredders
  • Used soil treatment
  • Foundries

Product Features:

  • 2 inch cleats belt (other options available)
  • Hydraulic motorization on request
  • 100% Made in Canada
  • Heavy duty steel case
  • Low cost of operation
  • 100% duty cycle

SKU Details

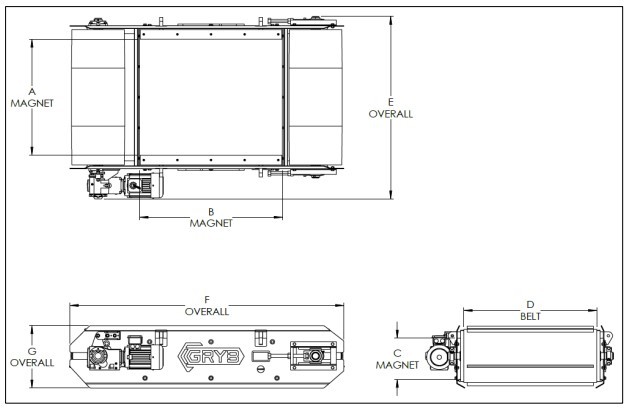

Sku Images Part# Weight (lbs.) Size/Model Max. Suspension Height (In.) Dimensions (See Diagram) - A Dimensions (See Diagram) - B Dimensions (See Diagram) - C Magnetic Flux Density (Gauss) Conveyor Belt Width - Crossbelt (In.) Conveyor Belt Width - Inline (In.) Dimensions (See Diagram) - D Dimensions (See Diagram) - E Dimensions (See Diagram) - F Dimensions (See Diagram) - G Pulley Ø (In.) Motor Power (HP.) Belt Speed (FPM) Description
GRYB-CPMAG-8-1838 1380 CPMAG-8-1838 10 18 38 8 1450 30 20 22 38 66 14 10 3 300 CPMAG-8-1838
GRYB-CPMAG-8-1844 1600 CPMAG-8-1844 10 18 44 8 1450 36 20 22 38 72 14 10 3 300 CPMAG-8-1844
GRYB-CPMAG-8-1851 1830 CPMAG-8-1851 10 18 51 8 1450 48 20 22 38 78 14 10 3 300 CPMAG-8-1851
GRYB-CPMAG-8-1857 2050 CPMAG-8-1857 10 18 57 8 1450 54 20 22 38 85 14 10 3 300 CPMAG-8-1857
GRYB-CPMAG-8-1863 2280 CPMAG-8-1863 10 18 63 8 1450 60 20 22 38 91 14 10 3 300 CPMAG-8-1863
GRYB-CPMAG-8-1869 2500 CPMAG-8-1869 10 18 69 8 1450 66 20 22 38 97 14 10 3 300 CPMAG-8-1869
GRYB-CPMAG-8-1876 2730 CPMAG-8-1876 10 18 76 8 1450 72 20 22 38 104 14 10 3 300 CPMAG-8-1876
GRYB-CPMAG-9-2238 1880 CPMAG-9-2238 11 22 38 9 1475 30 24 26 42 68 15 11 3 300 CPMAG-9-2238
GRYB-CPMAG-9-2244 2190 CPMAG-9-2244 11 22 44 9 1475 36 24 26 42 74 15 11 3 300 CPMAG-9-2244
GRYB-CPMAG-9-2251 2500 CPMAG-9-2251 11 22 51 9 1475 48 24 26 42 80 15 11 3 300 CPMAG-9-2251
GRYB-CPMAG-9-2257 2820 CPMAG-9-2257 11 22 57 9 1475 54 24 26 42 87 15 11 3 300 CPMAG-9-2257
GRYB-CPMAG-9-2263 3120 CPMAG-9-2263 11 22 63 9 1475 60 24 26 42 93 15 11 3 300 CPMAG-9-2263
GRYB-CPMAG-9-2269 3430 CPMAG-9-2269 11 22 69 9 1475 66 24 26 42 99 15 11 3 300 CPMAG-9-2269
GRYB-CPMAG-9-2276 3740 CPMAG-9-2276 11 22 76 9 1475 72 24 26 42 106 15 11 3 300 CPMAG-9-2276
GRYB-CPMAG-10-2638 2940 CPMAG-10-2638 12 26 38 10 1500 30 28 30 46 70 16 12 3 300 CPMAG-10-2638
GRYB-CPMAG-10-2644 3320 CPMAG-10-2644 12 26 44 10 1500 36 28 30 46 76 16 12 3 300 CPMAG-10-2644
GRYB-CPMAG-10-2651 3710 CPMAG-10-2651 12 26 51 10 1500 48 28 30 46 82 16 12 3 300 CPMAG-10-2651
GRYB-CPMAG-10-2657 4090 CPMAG-10-2657 12 26 57 10 1500 54 28 30 46 89 16 12 3 300 CPMAG-10-2657
GRYB-CPMAG-10-2663 4460 CPMAG-10-2663 12 26 63 10 1500 60 28 30 46 95 16 12 3 300 CPMAG-10-2663
GRYB-CPMAG-10-2669 4840 CPMAG-10-2669 12 26 69 10 1500 66 28 30 46 101 16 12 3 300 CPMAG-10-2669
GRYB-CPMAG-10-2676 5230 CPMAG-10-2676 12 26 76 10 1500 72 28 30 46 108 16 12 3 300 CPMAG-10-2676
GRYB-CPMAG-12-3538 4270 CPMAG-12-3538 14 35 38 12 1550 30 36 40 55 74 18 14 5 300 CPMAG-12-3538
GRYB-CPMAG-12-3544 4850 CPMAG-12-3544 14 35 44 12 1550 36 36 40 55 80 18 14 5 300 CPMAG-12-3544
GRYB-CPMAG-12-3551 5460 CPMAG-12-3551 14 35 51 12 1550 48 36 40 55 86 18 14 5 300 CPMAG-12-3551
GRYB-CPMAG-12-3557 6040 CPMAG-12-3557 14 35 57 12 1550 54 36 40 55 93 18 14 5 300 CPMAG-12-3557
GRYB-CPMAG-12-3563 6620 CPMAG-12-3563 14 35 63 12 1550 60 36 40 55 99 18 14 5 300 CPMAG-12-3563
GRYB-CPMAG-12-3569 7210 CPMAG-12-3569 14 35 69 12 1550 66 36 40 55 105 18 14 5 300 CPMAG-12-3569
GRYB-CPMAG-12-3576 7800 CPMAG-12-3576 14 35 76 12 1550 72 36 40 55 112 18 14 5 300 CPMAG-12-3576
GRYB-CPMAG-14-4451 7550 CPMAG-14-4451 16 44 51 14 1600 48 46 48 64 78 20 16 5 300 CPMAG-14-4451
GRYB-CPMAG-14-4457 8390 CPMAG-14-4457 16 44 57 14 1600 54 46 48 64 84 20 16 5 300 CPMAG-14-4457
GRYB-CPMAG-14-4463 9230 CPMAG-14-4463 16 44 63 14 1600 60 46 48 64 90 20 16 5 300 CPMAG-14-4463
GRYB-CPMAG-14-4469 10060 CPMAG-14-4469 16 44 69 14 1600 66 46 48 64 97 20 16 5 300 CPMAG-14-4469
GRYB-CPMAG-14-4476 10910 CPMAG-14-4476 16 44 76 14 1600 72 46 48 64 103 20 16 5 300 CPMAG-14-4476
GRYB-CPMAG-15-4851 8780 CPMAG-15-4851 17 48 51 15 1625 48 50 52 68 82 22 18 5 300 CPMAG-15-4851
GRYB-CPMAG-15-4857 9760 CPMAG-15-4857 17 48 57 15 1625 54 50 52 68 88 22 18 5 300 CPMAG-15-4857
GRYB-CPMAG-15-4863 10740 CPMAG-15-4863 17 48 63 15 1625 60 50 52 68 94 22 18 5 300 CPMAG-15-4863
GRYB-CPMAG-15-4869 11730 CPMAG-15-4869 17 48 69 15 1625 66 50 52 68 101 22 18 5 300 CPMAG-15-4869
GRYB-CPMAG-15-4876 12720 CPMAG-15-4876 17 48 76 15 1625 72 50 52 68 107 22 18 5 300 CPMAG-15-4876
